Msd Street Fire Ignition Box Wiring Diagram

6a pn 6246 and the 6t pn 6446. By vallery masson updated on july 9, 2021.

32 Msd Street Fire Wiring Diagram Wiring Diagram Niche

If triggering the ignition with the white wire:

Msd street fire ignition box wiring diagram. The 2nd generation rx 7 resource msd rx7 generation. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that last for 20° of crankshaft rotation when the engine is running at lower rpm. I got nothing when jumping the violet and green wire.

The tach output produces a 12 volt square wave signal with a 24% duty cycle. Some vehicles with factory tachometers may require a tach adapter to operate with the ignition. Image result for zuma wiring diagram kill switch electrical diagram wire.

With this sort of an illustrative guide, you are going to be able to troubleshoot, prevent, and total your assignments without difficulty. 6a, pn 6246 and the 6t, pn 6446. Sounds like maybe an incompatability between the msd box and the output signal from the distributor.

All of the wires of the msd ignition may be shortened as long as quality connectors are used or soldered in place. Remove the coil wire from the distributor cap and set the terminal approximately 1/2 from ground. Your wiring seems correct, just wanted to be sure.

44 msd 5520 wiring diagram. Wiring a msd 6al box in 2020 wire diagram automotive electrical. Wiring general wiring information wire length:

Not only will it enable you to achieve your required outcomes more quickly, but additionally make the complete procedure. I swapped out coils, even through it was running fine before the msd. Msd ignition wiring diagram chevy.

Wiring an msd with diagram for 6al distributor for msd distributor wiring diagram diagram wire msd. At times the wires will cross. Msd 6a direct fire ignition for mazda rx 7 rotary engine dr.

The street fire capacitve discharge ignition is perfect for performance enthusiasts with a tight budget. Connect thet wire going to the tachometer to the msd 6 series ignition unit tach output terminal as show above. Solid core spark plug wires cannot be used with an msd ignition.

Getting 500 ohms at the magnetic pick up and 900 ohms at the box once it goes thru the harness to get to the. Msd's street fire cd ignitions are built within a durable cast aluminum housing and easily connects to points,. 6a pn 6246 and the 6t pn 6446.

The soft touch rev limiter that is built into the msd 6al, 6btm and 6aln is. Msd blaster coil wiring diagram full ford diagrams 2 1967 8207 just wire ss honda prelude ecu pinout yamaha ignition 8360 1996 chevrolet ptc 2000 and tech notes 2006 s newest 6al takes conventional 6a 6200 jeep with tach 8728 hd July 9, 2021 on msd ignition wiring diagram chevy.

For example in a chevy v8 the firing order is 1 8 4 3 6 5 7 2. Disconnect the wiring from the distributor. Msd digital 6al highlights pn when viewing the wiring diagram for the 6al.

The primary wiring used on an msd has a special tinned. I am installing a pro billet 8361 distributor. This ensures combustion of the air/fuel mixture and produces great throttle response and smooth.

With this sort of an illustrative manual, you are going to be able to troubleshoot, stop, and total your projects without. Diagram msd 8207 wiring full version hd quality beefdiagram accademia archi it. Do not crank the engine.

To lengthen the wires, use one size bigger gauge Msd 6 hvc professional racing ignition with rev limiter. Msd tach signal gmr pickup.

This ensures complete combustion and produces great throttle response with a smooth idle. Msd street fire hei ignition wiring diagram in 2020 diagram wire msd. The tach output produces a 12 volt square wave signal with a 24% duty cycle.

My key on power dropped to 7.9 volts during starting so i used a direct wire to the battery to keep a full 12 volts. The street fire capacitve discharge ignition is perfect for performance enthusiasts with a tight budget. Street fire cd ignitions offer capacitive discharge technology that fires a series of multiple sparks for 20 degrees of crankshaft rotation when the engine is running under 3,000 rpm.

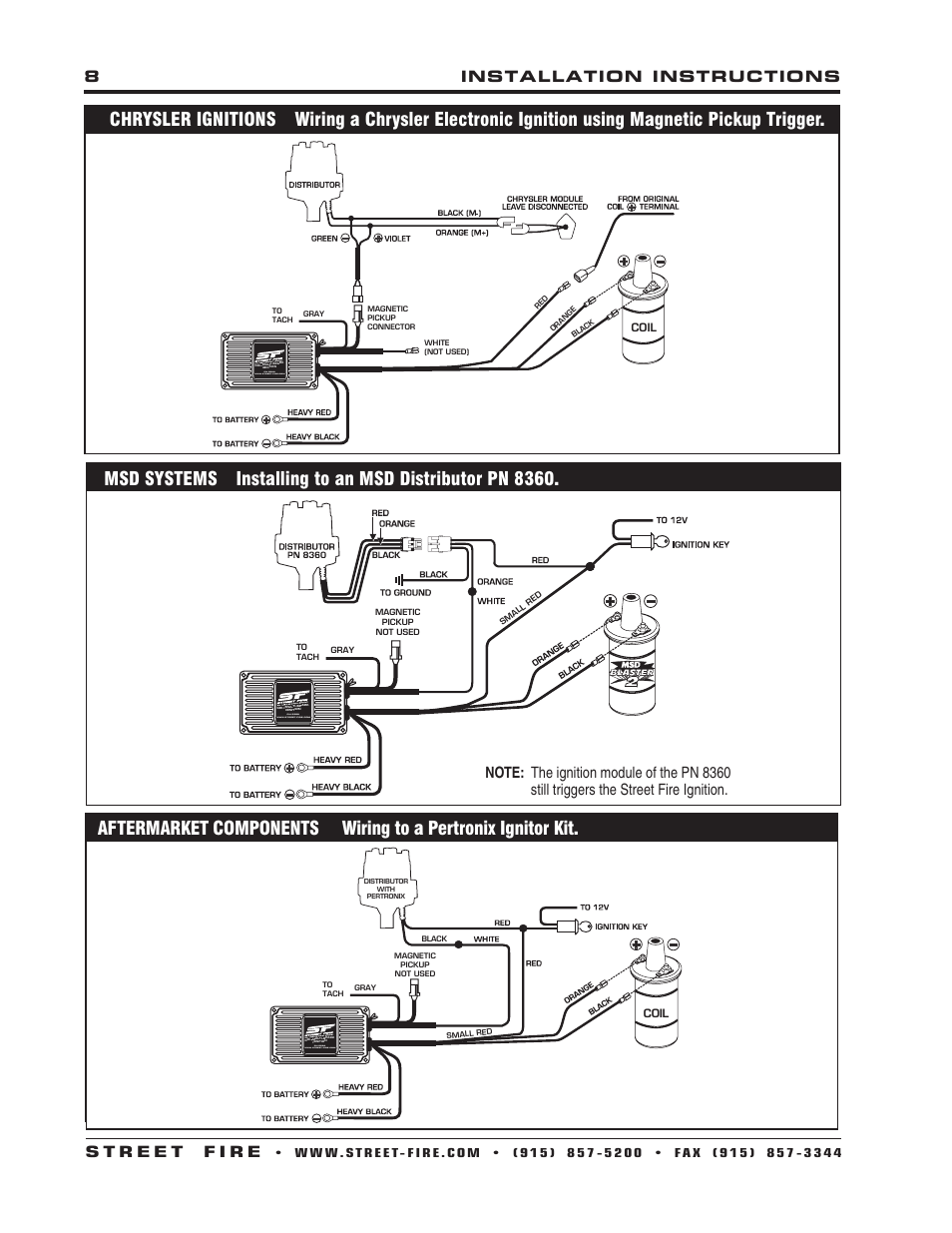

The following wiring diagrams illustrate numerous installations on different vehicles and. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that last for 20° of crankshaft rotation when the engine is running at lower rpm. 1 make sure the ignition switch is in the off position.

Disconnect the white wire from the distributor's points or ignition amplifier. Some vehicles with factory tachometers may require a tach adapter to operate with the ignition. Turn the ignition to the on position.

This ensures combustion of the air/fuel mixture and produces great throttle response and smooth. Part # 8918 be the first to write a review.
